Raw Optical Fiber
Click on the Part Number to
Order!
FUSED SILICA 0.22NA OPTICAL
FIBERS
Low and high OH step index fused
silica fibers transmit throughout the UV/Vis/NIR range. low OH fiber
are used for Vis/NIR applications, and high OH are used for UV/Vis
(see attenuation curves for specific data). These fibers have a
fused silica core and cladding, and a polymer buffer for added
protection. Fiber diameters of 100um –600um feature a high
temperature, high strength polyimide buffer, while the 1mm fibers
are buffered with nylon.
| Numerical aperture: 0.22 +/-0.2
(25.4 deg. acceptance angle).
Temperature tolerance:
Polyimide buffered fibers:
-190C
to +385C.
Nylon buffered fibers:
-40C to
+100C.
|
Bend radius (long
term/momentary):
50um: 31mm/12.5mm
100um: 35mm/14mm
200um: 61mm/25mm
400um: 120mm/48mm
600um: 165mm/66mm
1000um: 275mm/110mm
|
OPTICAL FIBER-Vis/NIR
|
OPTICAL FIBER-Vis/NIR |
| |
|
CORE/CLADDING/BUFFER SIZE
(µm) |
PART
NUMBER
click on part # to order |
PRICE/M
(1-99M) |
|
|
50/125/145 |
|
100/110/125
|
|
200/220/245 |
|
400/440/480 |
|
600/660/710
|
|
1000/1100/1600 |
|
|
|
|
$5.00 |
|
$4.00 |
|
$6.00 |
|
$18.90 |
|
$37.00 |
|
$100.00 |
|
| |
|
|
|
|
All
fibers are fused silica core and clad, step index, 0.22
numerical aperture. |

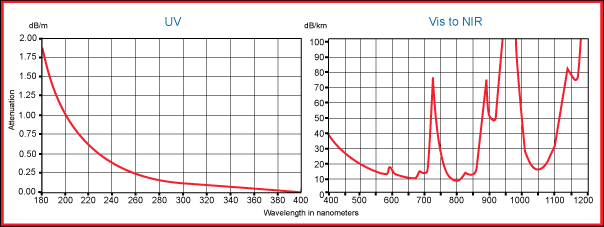

OPTICAL FIBER-UV/Vis Attenuation Curve
|
OPTICAL FIBER-UV/Vis |
| |
|
CORE/CLADDING/BUFFER SIZE
(µm) |
PART
NUMBER
click on part # to order |
PRICE/M
(1-99M) |
|
|
50/125/145 |
|
100/110/125
|
|
200/220/245
|
|
400/440/480 |
|
600/660/710 |
|
1000/1100/1600 |
|
|
|
|
$5.00 |
|
$4.00 |
|
$6.00 |
|
$16.20 |
|
$35.00 |
|
$75.00 |
|
| |
|
|
|
|
All
fibers are fused silica core and clad, step index, 0.22
numerical aperture. |
|
