Standard Products- Round Slit Bundles
Click on the Part Number to
Order!
Round to slit bundles are
configured with a linear fiber pattern at one end, and circular
pattern at the other end. They are typically used to remotely
transfer UV-Vis (180nm-1150nm) or Vis-NIR (340nm-2500nm) light
between spectrometers, monochromators, light sources, and
samples. The line end may be positioned over the instrument’s
input or output slit, to maximize efficiency. These bundles can
also be used in a variety of applications where it is necessary
to convert a round beam to a line pattern. |
|
|
ROUND-SLIT
BUNDLES (Click Part No. to order)
|
PART NUMBER click on part # to order |
PRICE
1.0 M |
PLUS
per additional M |
DESCRIPTION |
|
|
190-1100 nm |
|
|
|
| *RSU-150-1 |
$292 |
$100/M |
100 µm x
2.5 mm slit |
|
RSU-246-1 |
$298 |
$75/M
|
214 µm x
4.6 mm slit |
|
RSU-290-1 |
$386 |
$145/M |
214 µm x
9.0 mm slit |
|
|
350-2400 nm |
|
|
|
|
RSN-150-1 |
$292 |
$120/M |
100 µm x
2.5 mm slit |
|
RSN-246-1 |
$298 |
$120/M |
200 µm x
4.6 mm slit |
|
RSN-290-1 |
$386 |
$240/M |
200 µm x
9.0 mm slit |
|
be
Prices subject to
change without notice.
|
Specifications:
-
Fiber: 0.22na fused silica.
-
Sheath: PVC monocoil (steel coil w/PVC covering)
-
Connectors: SMA, FC, ST, or 1/4"OD ferrule.
-
Temp. Tolerance: -40C to +110C.
|
Connector code suffixes:
-S
= SMA905 connector
-F
= FC connector
-T = ST connector
-Q
= 1/4"OD ferrule
Use
these codes to designate which connectors you
require, for example:RSU-246-1-SQ has an SMA905
connector on the round end, and a 1/4"OD ferrule on the
slit end (1st connector designation is for the round
end, second is for the line end). |

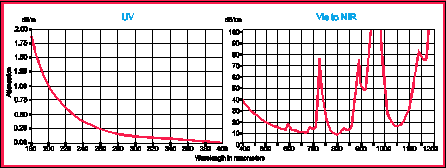

OPTICAL FIBER- UV/Vis Attenuation Curve

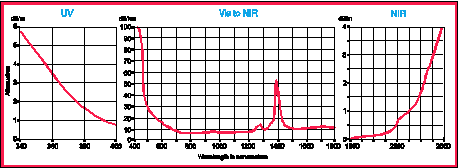

OPTICAL FIBER- Vis/NIR Attenuation Curve
Attenuation
curves do not include losses caused by input/output reflection,
or fiber packing factor. |
|
